7 Fittings Used in Pressure Gauge Installations Today

Pressure gauge installations rarely rely on just one fitting. Most working assemblies combine a process connection, a tube or pipe transition, and sometimes a protection accessory to keep the gauge readable and alive in real service.

TL;DR: Summary

• The seven fittings most often used in pressure gauge installations today are NPT adapters or couplings, inverted flare brass fittings, 45° flare fittings, compression fittings, push-in tube fittings, pressure-gauge snubbers, and siphon tubes or manifold isolation fittings.
• A practical pressure-gauge fitting set usually pairs a connection fitting with a protection accessory when the process has heat, pulsation, or vibration.
• Inverted flare brass fittings are a strong choice for soft copper or brass instrument lines because the metal-to-metal seat can be leak-resistant when the flare, seat, and flare nut match correctly.
• Compression fittings are convenient for straight tubing runs, while push-in fittings are best kept to lower-risk air or water service where quick changes matter more than high shock resistance.
• Snubbers help stabilize the pointer by reducing surges, and siphon tubes protect gauges in steam or hot media by creating a cooler fluid barrier before pressure reaches the instrument.
• If the gauge connection uses tapered NPT, seal the threads. If it seals on a flare seat or ferrule, do not treat it like an NPT joint.

That matters because many gauge failures blamed on the instrument are really fitting-selection problems. The right combination depends on tubing material, temperature, pulsation, service media, and whether the connection seals on threads, a flare seat, or a ferrule.

What fittings are most common in pressure gauge installations?

The most common pressure gauge fittings are NPT adapters, inverted flare brass fittings, compression fittings, snubbers, and siphon tubes. In many plants, a gauge assembly uses both a connection fitting and a protection device.

At the process connection, tapered pipe threads like male or female NPT are still common because many gauges, valves, and manifolds are sold with NPT ports. From there, the installer may transition into tubing with a flare, inverted flare, or compression connection, depending on tubing type and the service conditions.

If the line uses soft copper or brass tubing, inverted flare brass fittings are often chosen because the seal is made at the flare seat rather than by crushing the tube wall. That can be attractive in gauge lines that may need periodic service or replacement.

"Industrial Parts Fittings lists 45° flare fittings, fine-thread 9/16-24 fittings, and inverted-flare fittings as separate product groups."

The second half of the assembly is protection. A pressure-gauge snubber is installed in the line to damp oscillations and reduce surge effects, while a siphon tube, often called a pigtail, is used to protect the gauge in steam or other high-temperature service.

How do you choose the right pressure gauge fitting for a specific installation?

The right choice starts with the service conditions, then the connection geometry, then the maintenance plan. A WIKA-style gauge or an Ashcroft-style gauge can still fail early if the fitting logic is wrong.

Step 1 is to identify what the gauge actually sees. If the media is steam or very hot, add a siphon tube before worrying about tubing style. If the line is pulsing, add a snubber or throttling device. If the line is exposed to vibration, favor a connection that resists loosening and supports the tubing well.

Step 2 is to map the sealing method. If the port is male NPT into female NPT, use a proper thread sealant on the tapered thread only. If the joint is a flare or inverted flare, the seal is on the metal seat, not the threads. If the joint is compression, the ferrule and nut create the seal and grip.

Step 3 is to choose the fitting family that matches the tube material and service style. Soft copper instrument tubing often fits well with flare and inverted flare fittings. Thin-wall tube runs that need field assembly may suit compression fittings. Quick-change pneumatic lines may justify push-in fittings, but not every gauge service is a good candidate.

After those three steps, size and material follow naturally. Common shop practice is to confirm thread type, tubing OD, pressure range, and media compatibility before ordering.

What are the 7 fittings used in pressure gauge installations today?

The seven most used fitting types are easy to group by function. Some connect the gauge, and some protect it.

1. Inverted flare brass fittings: Industrial Parts Fittings catalogs these as a distinct group because inverted flare seat geometry matters in instrument lines that use soft copper or brass tubing.
2. 45° flare fittings: Common where a standard flare seat is preferred and the installer wants a serviceable metal-to-metal connection.
3. Compression fittings: Built around a nut and compression ferrule, these are widely used on tubing where flaring is not the chosen assembly method.
4. NPT adapters and couplings: The default bridge between gauge ports, valves, manifolds, and plant piping.
5. Push-in tube fittings: Useful for quick-connect air or water lines where tool-free changes are valuable.
6. Pressure-gauge snubbers: Added upstream of the gauge to damp oscillation and improve reading stability.
7. Siphon tubes or pigtails: Used in steam and hot service to keep direct heat away from the gauge element.

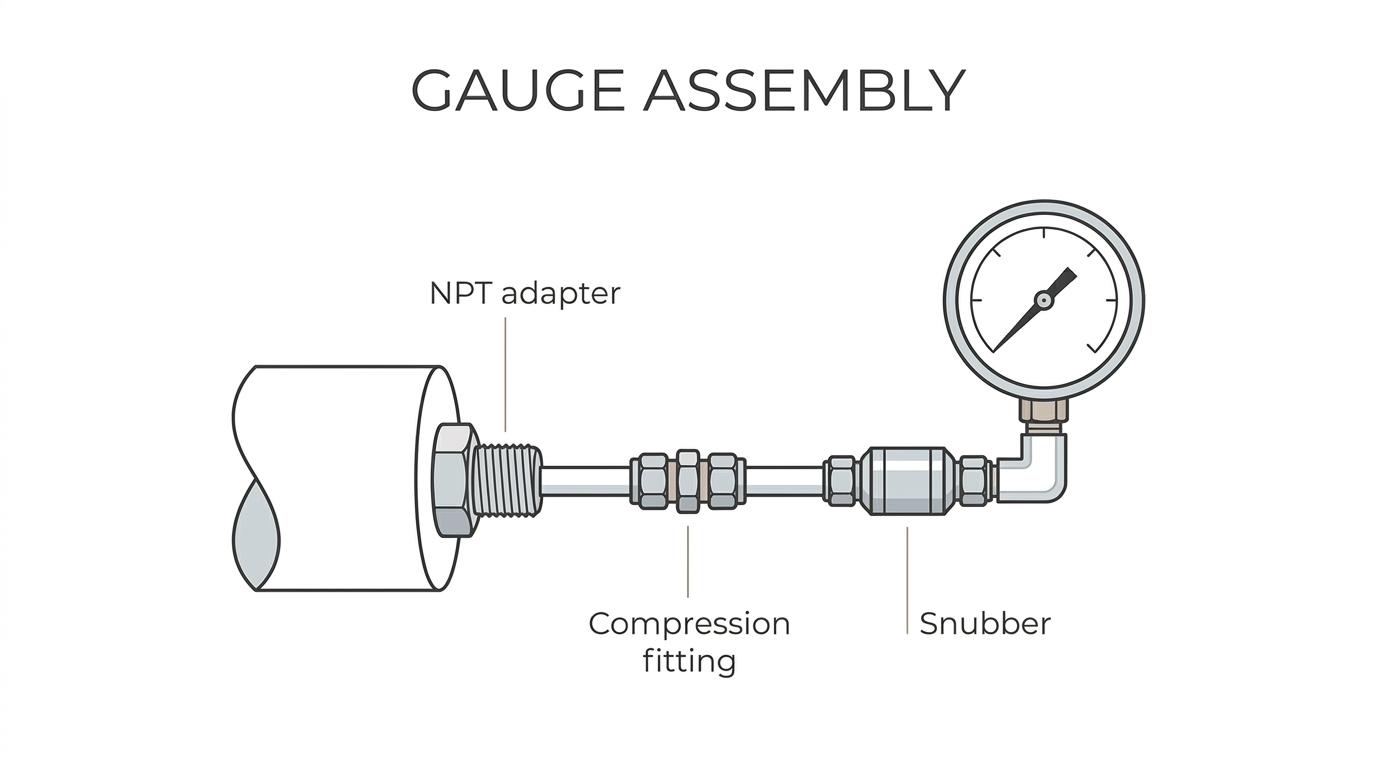

This list also explains why many real assemblies are hybrids. A gauge may use an NPT process port, a compression tube adapter, and a snubber all in the same small installation.

How do inverted flare brass fittings compare with compression fittings for pressure gauge lines?

Inverted flare brass fittings and compression fittings solve similar problems, but they seal differently. SAE inverted flare fittings use a formed tube end and matching seat, while compression fittings rely on a ferrule biting or gripping the tube.

Inverted flare brass fittings are often preferred when the installer wants a durable, serviceable connection on soft copper or brass tubing. A properly formed flare spreads load across the seat, and disassembly does not always mean replacing every component. One common misconception is that flare threads do the sealing. They do not. The seat does.

"Industrial Parts Fittings says flare and inverted-flare connections require a short flare nut to make the connection."

Compression fittings are easier when the installer does not want to flare tubing in the field. They can be very effective on clean, straight tubing with correct insertion depth and torque. The trade-off is that overtightening can distort the tube or ferrule, while undertightening can leak. If maintenance crews regularly disconnect the line, flare connections often feel more predictable.

If the medium is critical and the tubing is soft copper, many buyers lean toward inverted flare. If the tubing material is harder or the field team wants a no-flare assembly method, compression may win.

How do you install inverted flare brass fittings on a pressure gauge line?

Correct installation of inverted flare brass fittings depends on tube prep, flare quality, and matching seat geometry. A Parker-style tube cutter and a standard flare tool are more important than extra sealant.

Before tightening anything, confirm that the fitting is actually inverted flare and not standard flare or NPT. Then cut the tube square, deburr it, and slide the correct short flare nut onto the tube before forming the flare. A mismatched nut or wrong flare angle is a common source of leaks.

1. Prepare the tube: Cut square, deburr inside and outside, and inspect for cracks or out-of-round damage.
2. Form the flare: Use the correct flaring tool and create a clean, even flare with no splits at the lip.
3. Seat and tighten: Align the tube squarely to the fitting seat, hand-start the flare nut, then tighten to the fitting maker’s guidance without forcing the joint.

Do not apply PTFE tape to the flare face. If there is NPT on the opposite side of an adapter, seal only that tapered thread. If the flare leaks after light tightening, inspect the flare surface first instead of simply adding more torque.

When should you use a pressure-gauge snubber?

Use a pressure-gauge snubber when the pointer vibrates, the process pressure surges, or the instrument sees rapid cycling. GovInfo guidance describes the snubber as a line device that dampens oscillation and steadies readings.

Snubbers protect both readability and gauge life. In pump discharge, compressor, hydraulic, or reciprocating service, the actual process pressure may still be within the gauge range, yet the repeated spikes can beat up the movement. A snubber reduces how sharply those spikes reach the instrument.

There is a trade-off. More damping can mean a slower response to real pressure changes. That is why throttling snubbers with a variable orifice are useful in some systems. If fast response matters more than pointer calm, use the lightest snubbing that still stops visible chatter. If the process is dirty, remember that very small orifices can plug.

How do you install a siphon tube for steam or high-temperature service?

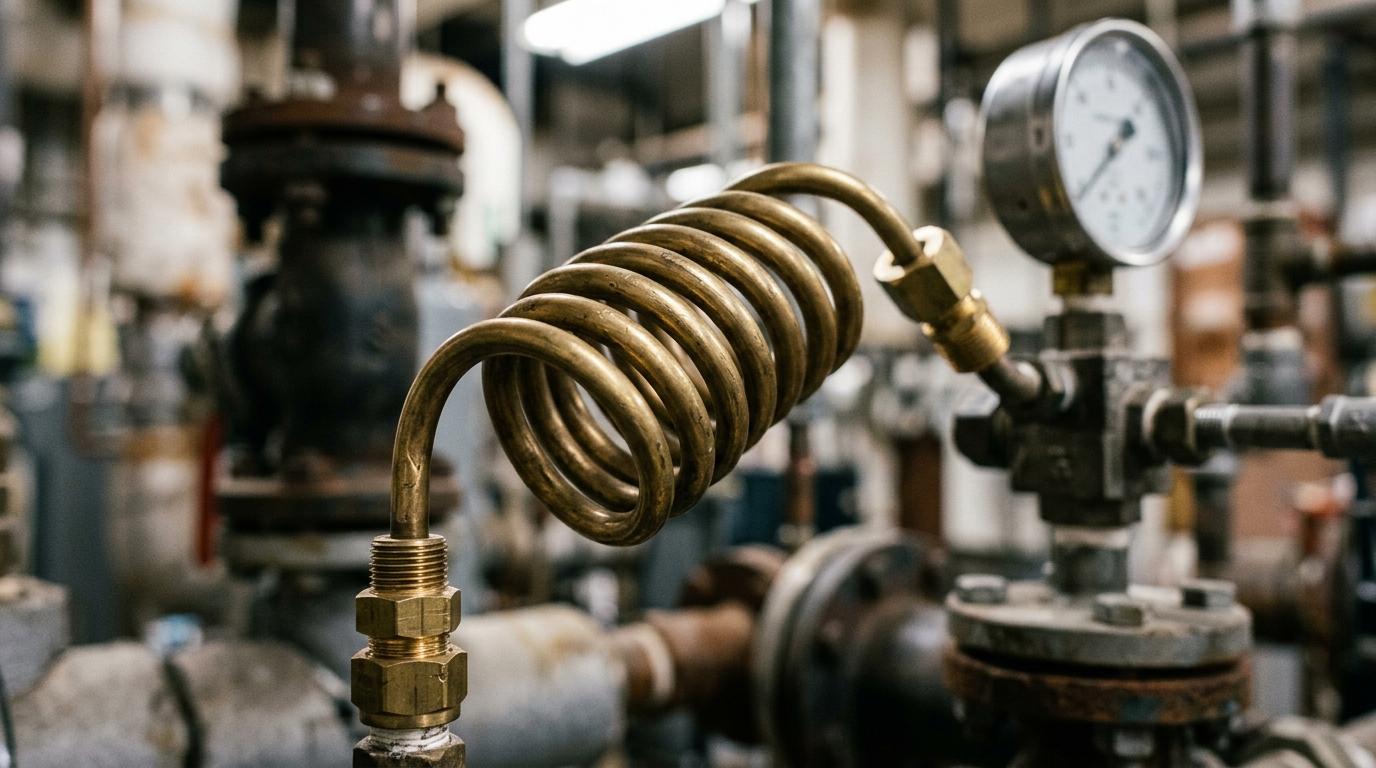

Install a siphon tube when the gauge is exposed to steam or hot media that could overheat the pressure element. A brass or steel pigtail creates a cooler fluid pocket between the process and the gauge.

The usual goal is simple: keep direct process temperature off the gauge while still transmitting pressure. In steam service, installers commonly fill the siphon with water during setup so the loop acts as a condensate barrier.

• Mount the siphon first: Connect the pigtail between the hot process port and the gauge or valve block.
• Create the fluid seal: In steam service, fill the loop with water before final operation if site practice calls for it.
• Orient for service access: Leave enough clearance to remove the gauge and inspect the loop for blockage or corrosion.

A common mistake is treating the siphon as a pressure reducer. It is not. Its main job is temperature protection. If the line also pulses, pair the siphon with a snubber or suitable isolation device.

Are push-in fittings or flare and inverted flare fittings better for pressure gauge lines?

Push-in fittings are best for speed, while flare and inverted flare fittings are better for tougher gauge service. The right choice depends on whether quick changes or mechanical robustness matters more.

Push-in tube fittings are quick-connect parts used to attach air or water lines with very little tooling. That makes them attractive on bench setups, test stands, light pneumatic circuits, and temporary gauge stations. They are especially handy where technicians need to remove and reroute tubing frequently.

"Industrial Parts Fittings describes push-in tube fittings as quick-connect parts for attaching air or water lines without tools."

Flare and inverted flare fittings are slower to assemble, but they are often the better fit for permanent gauge lines using soft copper or brass tube. They handle repeated service more predictably in many industrial layouts, and they are less likely to be chosen by accident for the wrong tubing material.

If the application is compressed air with modest shock and frequent rework, push-in fittings are practical. If the application is oil, fuel, brake-style tubing logic, or a more permanent instrument run, inverted flare brass fittings are usually the safer default.

What thread and connection mistakes cause leaks at pressure gauges?

Most pressure gauge leaks come from mismatched connection types, bad tube prep, or sealing the wrong surface. NPT, inverted flare, and compression joints fail for different reasons.

The most common errors are easy to recognize once you separate the joint families:

• Wrong seal location: Applying thread tape to a flare seat or expecting dry NPT threads to seal without compound.
• Wrong component match: Mixing 45° flare parts, inverted flare parts, and unrelated tube nuts because the thread “almost fits.”
• Bad tube preparation: Leaving burrs, cracks, or an uneven flare lip that cannot seat evenly.
• Overtightening: Crushing a ferrule, distorting a tube end, or damaging softer brass seats.

A useful shop rule is this: if the connection seals on a seat, inspect the seat first. If it seals on tapered threads, inspect thread engagement and sealant use first. That simple if-then logic resolves many “mystery” leaks before the gauge is blamed.

When should you use a manifold, valve, or gauge isolation accessory?

Use a manifold or isolation valve when the gauge needs safer maintenance, controlled venting, or calibration access. In instrument service, a simple needle valve or a multi-valve manifold can be just as important as the fitting itself.

A basic isolation valve lets technicians remove a gauge without shutting down the whole branch. A manifold adds more control, especially where transmitters and gauges share duties or where venting and equalization matter. In higher-discipline instrument systems, 2-valve, 3-valve, and 5-valve arrangements help manage startup, shutdown, and calibration steps in a repeatable way.

This is also where buyers should think beyond the single fitting. If the gauge is in hot service, use a siphon. If it is in pulsating service, use a snubber. If it needs controlled maintenance, add isolation. The best pressure gauge installation is rarely just a gauge screwed into a port.
