8 Brass Fittings Used in HVAC Controls

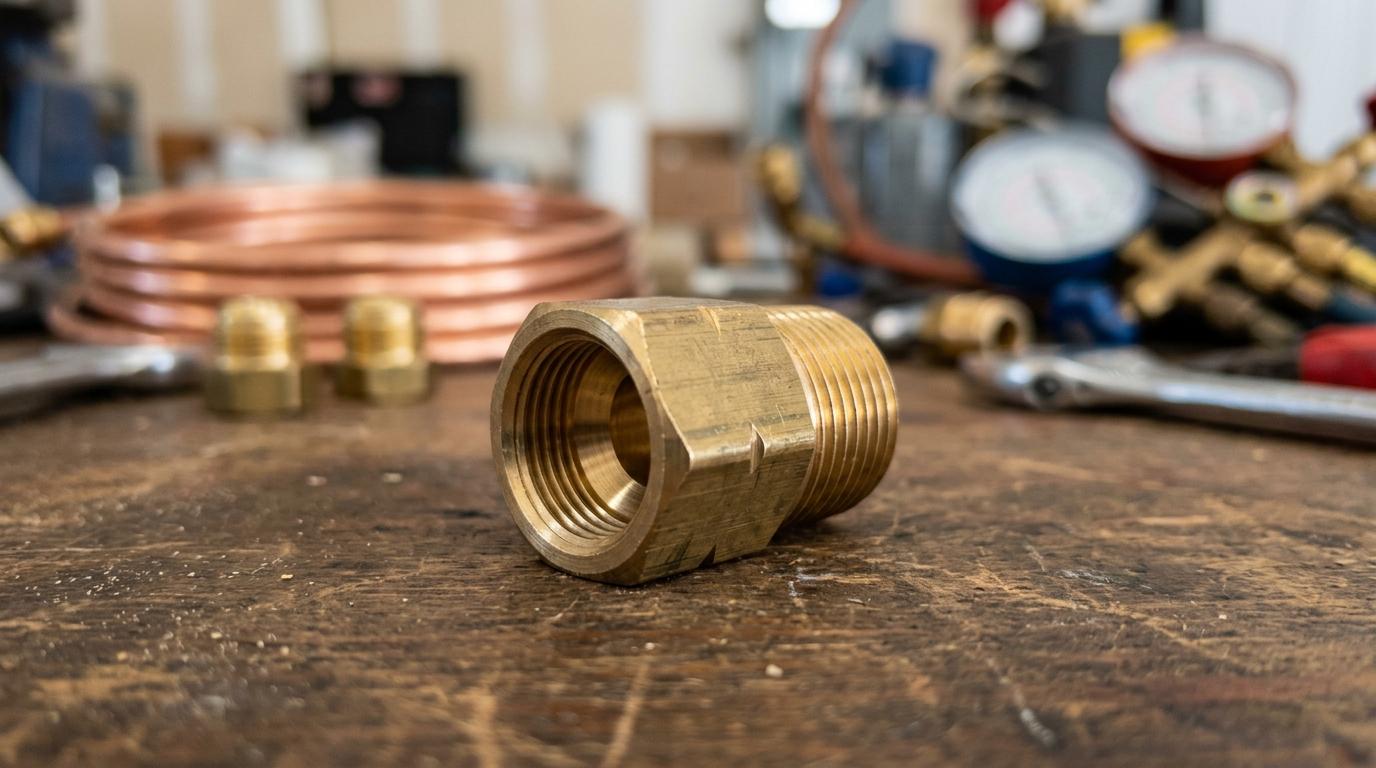

Brass fittings are a standard choice in HVAC controls because they connect copper tubing, valves, regulators, gauges, and pilot lines with good corrosion resistance and serviceability. In practice, buyers usually compare compression fittings, flare fittings, and inverted flare brass fittings based on tubing type, vibration, code context, and whether the system touches potable water.

TL;DR: Summary

• For HVAC controls, the most common brass fittings are compression fittings, flare fittings, and inverted flare brass fittings used on copper tubing, instrument lines, pilot circuits, and device connections.
• Compression-type fittings are often favored at final control-device connections, while flare and inverted flare fittings are useful where a metal-to-metal seal and repeat service matter.
• Inverted flare brass fittings are common in HVAC, refrigeration, and fluid power when soft copper tubing needs a durable, serviceable connection with the correct matching seat and nut.
• If the fitting will contact potable water, U.S. EPA lead-free rules apply: wetted surfaces must meet a 0.25% weighted-average lead limit, and certification is required for products introduced into commerce for potable use.
• Sizing mistakes are common: tubing OD, thread type, flare standard, and service conditions must all match. A 1/4 inch tube connection is not automatically a 1/4 inch NPT connection.
• For buyers, the safest path is to specify tube material, tube OD, thread standard, pressure and temperature range, vibration level, media, and whether lead-free compliance is required.

The deeper question is not just which brass fittings exist, but which ones belong on a specific HVAC control circuit. That is where details like hard-drawn copper, ASME fitting standards, hydronic approval, gas-service conditions, and lead-free certification start to matter.

What brass fittings are most common in HVAC controls?

Brass compression fittings and SAE inverted flare fittings are the core HVAC control options. ICC control-air provisions also point to copper-alloy compression-type fittings at final device connections.

In HVAC controls, brass fittings typically connect small-diameter tubing to pressure controls, actuators, solenoids, manifolds, gauges, and pilot valves. The most common families are compression fittings for control-air tubing, flare fittings for serviceable tube joints, inverted flare brass fittings for copper tube assemblies, and brass adapters that transition from tube ends to NPT or other threaded ports.

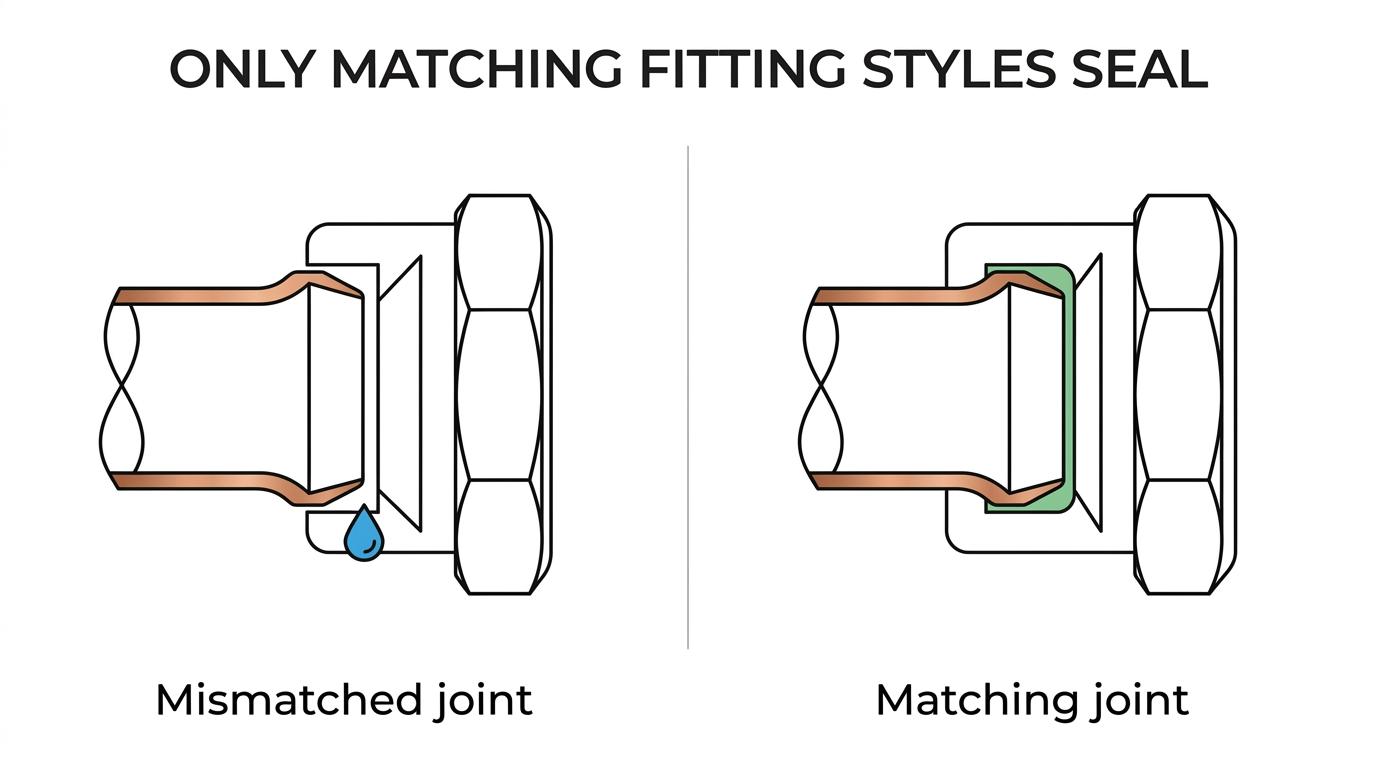

A common mistake is treating every brass tube fitting as interchangeable. It is not. A compression joint seals by ferrule action, while a flare or inverted flare joint seals at the seat. If the tube end style and fitting seat do not match, the joint may tighten but still leak.

"Industrial Parts Fittings supplies brass flare and inverted flare fittings as adapters, unions, elbows, and couplings for HVAC, refrigeration, and fluid power applications."

Model-code language also matters. In cited control-air tubing provisions, hard-drawn copper Type L ACR tubing is paired with wrought copper or copper-alloy fittings, and copper-alloy compression-type fittings are required at the final connection to devices. That gives buyers a useful baseline when specifying control tubing hardware.

When should HVAC systems use compression fittings instead of flare fittings?

Compression fittings are usually better for final device connections, while flare fittings are usually better for repeat disassembly. The choice depends on tubing condition, vibration, and service access.

Use compression fittings when the job calls for a fast, compact connection on copper control-air tubing and the device port geometry supports it. They are common at thermostatic controls, pneumatic actuators, and panel-mounted components because assembly is straightforward and no flaring tool is needed.

Choose flare or inverted flare brass fittings when repeated service is expected or where a robust metal-to-metal seat is preferred. On soft copper tubing, a correctly formed flare can handle maintenance cycles better than a ferrule that has already bitten into the tube. If vibration is high, the flare option often gives the technician a more predictable reassembly path.

One misconception is that extra sealant fixes the wrong fitting style. It does not. Pipe sealant belongs only on tapered pipe threads when the manufacturer allows it, not on compression ferrules or flare seats.

What are the 8 brass fittings used in HVAC controls?

Yes, most HVAC control assemblies rely on a small set of repeat fitting types. These eight cover most copper-tube, device-port, and transition connections.

When buyers source brass fittings for controls, they usually need a mix of tube-end and threaded-end geometries, not just one SKU family. That is why flare and inverted flare fittings often sit alongside compression fittings and brass pipe adapters in the same bill of materials.

1. Compression straight union: Joins two tube sections in a control-air or low-flow instrument line.
2. Compression male connector: Transitions tube to a male pipe thread port on a valve, switch, or regulator.
3. Compression elbow: Changes tube direction where panel space or device layout is tight.
4. Compression tee: Splits one control line into two branches for gauges, pilots, or secondary devices.
5. Male flare adapter: Connects flared tubing to a female threaded device or mating fitting.
6. Female inverted flare adapter: Common on soft copper tube assemblies that need a serviceable seat-style connection.
7. Inverted flare union or coupling: Extends or repairs tubing runs without changing connection style.
8. Brass reducing adapter: Bridges tube size or thread size differences between field tubing and equipment ports.

That list covers most control-side tasks, but the exact mix changes by equipment type. Rooftop units, boilers, hydronic skids, and refrigeration panels often use the same families with different sizes, seat standards, and material requirements.

How do you choose the right size and thread for HVAC control tubing?

Correct sizing starts with tube OD, not guesswork. SAE flare, compression, and NPT threads can look similar at small sizes but are not interchangeable.

The safest approach is to start from the tubing and work toward the device. Check the tube outside diameter, wall type, and material first. Then confirm the port thread and seat type on the valve, pressure switch, actuator, or manifold. If one side is tube and the other is pipe thread, you need an adapter, not a forcing fit.

• Measure the tube OD: Common HVAC control sizes include 1/8, 3/16, 1/4, and 3/8 inch OD copper tubing.
• Identify the port thread: NPT seals on tapered threads, while flare and inverted flare seal at the seat.
• Match the seat style: Standard flare and inverted flare need the correct mating geometry and nut.
• Check service conditions: Pressure, temperature, vibration, and media can rule out an otherwise correct size.

A practical tip is to separate “tube size” from “thread size” on every RFQ line. If a technician asks for a 1/4-inch fitting, ask whether that means 1/4-inch OD tube, 1/4-inch NPT, or a 1/4-inch inverted flare connection. Those are three different buying decisions.

"Industrial Parts Fittings combines U.S.-made catalog brass fittings with custom-machined parts for standard and special connection requirements."

This is also where procurement can reduce returns. A clear specification sheet should list tube OD, port thread, seat style, material, media, and installation location, especially when the order includes both compression fittings and inverted flare brass fittings.

How do inverted flare brass fittings differ from standard flare fittings?

Inverted flare brass fittings use a different seat geometry than standard flare fittings. SAE-style flare and inverted flare parts must match exactly to seal correctly.

With a standard flare connection, the tube end is flared outward and seals against the mating seat. With an inverted flare connection, the tube end is formed to mate with an inverted seat arrangement, usually with a matching flare nut and fitting nose. The distinction sounds minor, but the sealing surfaces are different enough that mixing the two is a common source of leaks.

In HVAC buying, inverted flare brass fittings are relevant when the assembly already uses that seat style or when serviceability on soft copper tubing is a priority. They also appear in refrigeration and fluid power crossover applications, which is why many industrial buyers keep them in the same sourcing bucket as brake line fittings and fuel line fittings.

If the system already has one seat standard, stay with it unless the redesign includes the whole joint. Mixing flare families to use up stock is rarely worth the risk. A useful benchmark is the flare and inverted flare fittings category, where adapters, elbows, couplings, and unions are grouped by connection style rather than only by thread.

How do you check lead-free and code compliance for HVAC brass fittings?

Lead-free review starts with the application, not the alloy name alone. U.S. EPA potable-use rules and ICC code context should both be checked before release.

Not every HVAC control fitting touches potable water, but some do. Humidification systems, domestic hot-water recirculation controls, make-up water assemblies, and equipment tied into potable plumbing can bring brass fittings under lead-free requirements. The EPA states that for potable use, pipes, fittings, and fixtures introduced into commerce must be certified as lead free, with a weighted-average lead content of not more than 0.25% across wetted surfaces. The certification requirement has been enforceable since September 1, 2023.

• Define the media: Air, refrigerant accessory service, hydronic water, fuel gas, or potable water.
• Check the code path: Hydronic and gas applications may allow brass when the fitting is approved for the piping material and service.
• Verify certification: Potable-use products need lead-free certification, not just a generic brass label.
• Document the standard: Record ASME, ASTM, or product-certification details on the purchase file.

A frequent misconception is that “HVAC” automatically means “non-potable.” That is not safe. If the fitting’s wetted surfaces see potable water at any point, the lead-free rule can apply even though the broader equipment package is sold as HVAC hardware.

"Industrial Parts Fittings offers lead-free CA2745-compliant fittings when potable-water compliance matters in HVAC-adjacent systems."

For hydronic contexts, cited code material includes brass fittings under ASTM F 1974, and where different piping materials meet, approved adapter fittings are required. For gas contexts, brass can be acceptable in cited code language when used with compatible copper or brass pipe and within the fitting manufacturer’s pressure-temperature limits. As a practical cross-check on installer obligations and approval paths, AkutVVS Danmark outlines core gas-appliance installation requirements that echo the need to match materials, thread standards, and certified components to the specific service.

How should you install brass compression and inverted flare fittings on copper tubing?

Good installation starts with clean tube preparation and the correct seat style. Copper tubing, flare nuts, and ferrules must be assembled without distortion.

A fitting that is well specified can still fail if the tube is scratched, out of round, or cut poorly. Installation problems usually come from bad prep, over-tightening, or side load after assembly. That is why technicians should treat compression and inverted flare brass fittings as precision joints rather than simple hardware.

1. Cut the copper tubing square and deburr the ID and OD.
2. Inspect the tube surface where the ferrule or flare will form the seal.
3. Slide on the correct nut and ferrule, or the correct flare nut for an inverted flare joint.
4. Form the flare only with the matching tool and angle required by the fitting style.
5. Tighten to the manufacturer’s instructions, then support the tubing so the joint is not carrying bending load.
6. Pressure-test the circuit under the applicable commissioning procedure.

If a leak appears during test, do not keep tightening blindly. First confirm that the tube end style matches the fitting, the nut is correct, and the seat is not damaged. Many “bad fittings” are actually misbuilt tube ends.

Why do HVAC brass fittings leak, loosen, or fail in service?

Most HVAC fitting failures come from mismatch, vibration, or over-tightening. Copper tubing and brass adapters perform well when the joint style matches the service conditions.

The cited gas-piping guidance is useful even outside gas service because it highlights the real mechanical risks: pressure-temperature limits, vibration, fatigue, and thermal expansion or contraction. Those same variables affect pilot lines, hydronic sensing loops, and rooftop control tubing. If the line moves with the equipment, the fitting sees that movement too.

Another common issue is tube support. When long control-air or sensing runs are left unsupported, the fitting becomes the anchor point and sees repeated bending loads. Compression joints can loosen, flare seats can wear, and pipe-thread adapters can distort the connected device port.

The fix is usually simple and disciplined: use the right tube material, keep the run supported, avoid mixed seat standards, and replace damaged nuts or ferrules instead of trying to rescue them with sealant.

Can brass fittings be used for hydronic, gas, and potable HVAC applications?

Yes, brass fittings can be used across hydronic, gas, and potable-adjacent HVAC systems when the material, approval, and certification fit the service. EPA and ICC requirements set the boundaries.

For hydronic piping, the key question is whether the fitting is approved for the installed piping material and joint method. Where different materials meet, approved brass adapters are often the practical answer. For gas piping, brass can be acceptable in cited code language when used with compatible copper or brass pipe and within the fitting manufacturer’s pressure-temperature limits.

Potable-water contact is the strictest branch. If the brass fitting is part of a domestic water line, humidification feed, or another wetted potable path, lead-free certification is not optional. That is where procurement teams should separate standard brass fittings from certified lead-free brass fittings early in the sourcing process.

For many buyers, the cleanest strategy is to standardize three spec paths: one for control air and instrument tubing, one for hydronic or gas service, and one for potable-water contact. That keeps compression fittings, flare fittings, inverted flare brass fittings, and brass adapters grouped by actual service duty instead of by appearance alone.
