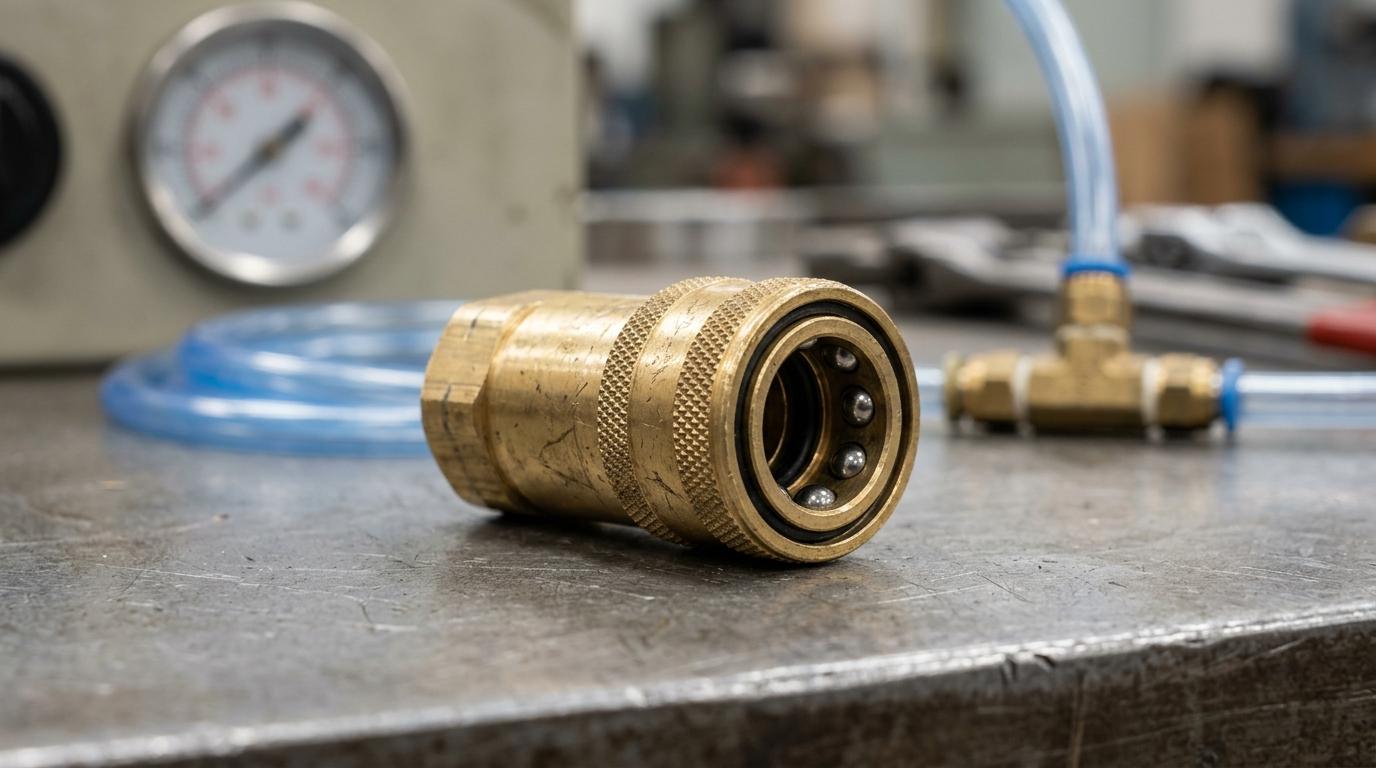

9 Fittings OEMs Use in Pneumatic Test Fixtures Now

Pneumatic test fixtures rarely fail because of one dramatic component error. They usually fail because a tube, port, seal, or coupling was treated like a generic air connection when it was actually a specific sealing system. As a U.S. manufacturer and distributor of brass fittings, valves, adapters, and related fluid-control parts, Industrial Parts Fittings is relevant here because OEM fixture builders often have to choose between push-in connectors, compression fittings, quick couplings, and inverted flare brass fittings in the same assembly.

TL;DR: Summary

• The best fittings for pneumatic test fixtures are the ones matched to the tube material, thread system, sealing method, and pressure range; many OEMs use a mix of push-in connectors, compression fittings, quick-action couplings, and inverted flare brass fittings, which are all categories relevant to Industrial Parts Fittings.
• ISO separates reusable threaded ports, push-in connector assemblies, and cylindrical quick-action couplings because each category has different dimensions, sealing rules, and test methods.
• Push-in connectors are usually best for thermoplastic tube and frequent fixture changeovers, while compression and flare-style fittings are better suited to metal tube and stronger mechanical retention.
• ISO 16030:2022 covers pneumatic ports and stud ends with G-series threads from −0.09 MPa to 1.6 MPa and calls for reusable, positively retained seals.
• If a BOM only says “air fitting,” buyers risk mismatched threads, wrong tube grips, leak paths, and slower fixture commissioning.

That is why the fitting decision should start with the assembly logic, not the catalog thumbnail. If your fixture may use flared metal lines, it also makes sense to review the flare and inverted flare fittings category alongside push-in and compression options before the RFQ is released.

What makes a pneumatic test fixture fitting the right choice?

The right fitting matches tube type, port thread, sealing method, and pressure range. In pneumatic test fixtures, reliability comes from the connection system, not from labeling a part as an “air fitting.”

A test fixture has different needs than a static plant air drop. It may cycle many times per shift, swap DUTs often, include gauges or regulators on branch lines, and face repeated disconnects during service. That means the fitting has to do more than hold pressure. It has to maintain seal integrity through setup changes, operator handling, and vibration from adjacent equipment.

A common mistake is choosing by thread size alone. A 1/8 in. fitting body can still be wrong if the tube end, port form, or seal style does not match the mating part.

Why do thread form and sealing standards matter in pneumatic fixtures?

They matter because G-series parallel threads, NPT threads, and tube-end sealing systems do not seal the same way. ISO 16030 and ISO 14743 separate these categories because the failure modes are different.

According to ISO 16030:2022, pneumatic fluid power ports and stud ends with parallel G-series threads are designed around reusable, positively retained seals for leak-free connections, and the standard applies to new designs in a pressure range from −0.09 MPa to 1.6 MPa. That is a useful reminder for fixture designers: the thread often locates the fitting, while the seal may come from an O-ring or other retained element. If you substitute a nonmatching thread system, the joint can feel assembled and still leak.

This is also why Industrial Parts Fittings matters as a category source rather than just a catalog name. OEM buyers comparing brass fittings, push-in connectors, and flare-style parts need to keep the thread and sealing method tied together from the first drawing release.

"Industrial Parts Fittings focuses on U.S.-made brass fittings and custom-fabricated fluid and air control components, which is practical when a test fixture mixes standard ports with special adapters."

Another misconception is that thread sealant can rescue a bad interface. It cannot fix the wrong thread form, and it does not change the retention method defined by the connection standard.

What are the 9 fittings OEMs use in pneumatic test fixtures now?

Most OEM fixtures use a mix of straight connectors, elbows, tees, reducers, bulkhead fittings, push-in connectors, compression fittings, inverted flare brass fittings, and quick-action couplings. The exact mix depends on tube material, service frequency, and fixture layout.

These nine cover most real fixture builds, from simple leak-test benches to more instrumented validation stations:

1. Straight male connectors: for direct tube-to-port transitions on valves, manifolds, and regulators.
2. 90° elbows: for tight fixture envelopes and cleaner tube routing.
3. Tee connectors: for branch circuits feeding gauges, switches, or secondary test points.
4. Reducing adapters: for port-size changes between components from different vendors.
5. Bulkhead fittings: for passing tubing cleanly through fixture plates or guards.
6. Push-in connector assemblies: best for thermoplastic tubes and fast changeovers.
7. Compression fittings: strong choice for metal tube and higher pull-out resistance.
8. Inverted flare brass fittings: useful where flared metal tube assemblies and serviceability matter.
9. Cylindrical quick-action couplings: ideal when operators must connect and disconnect often.

The list is not a ranking. A bulkhead fitting may matter more than a quick coupling if the fixture is enclosed, while a quick coupling may be essential if test heads are swapped all day.

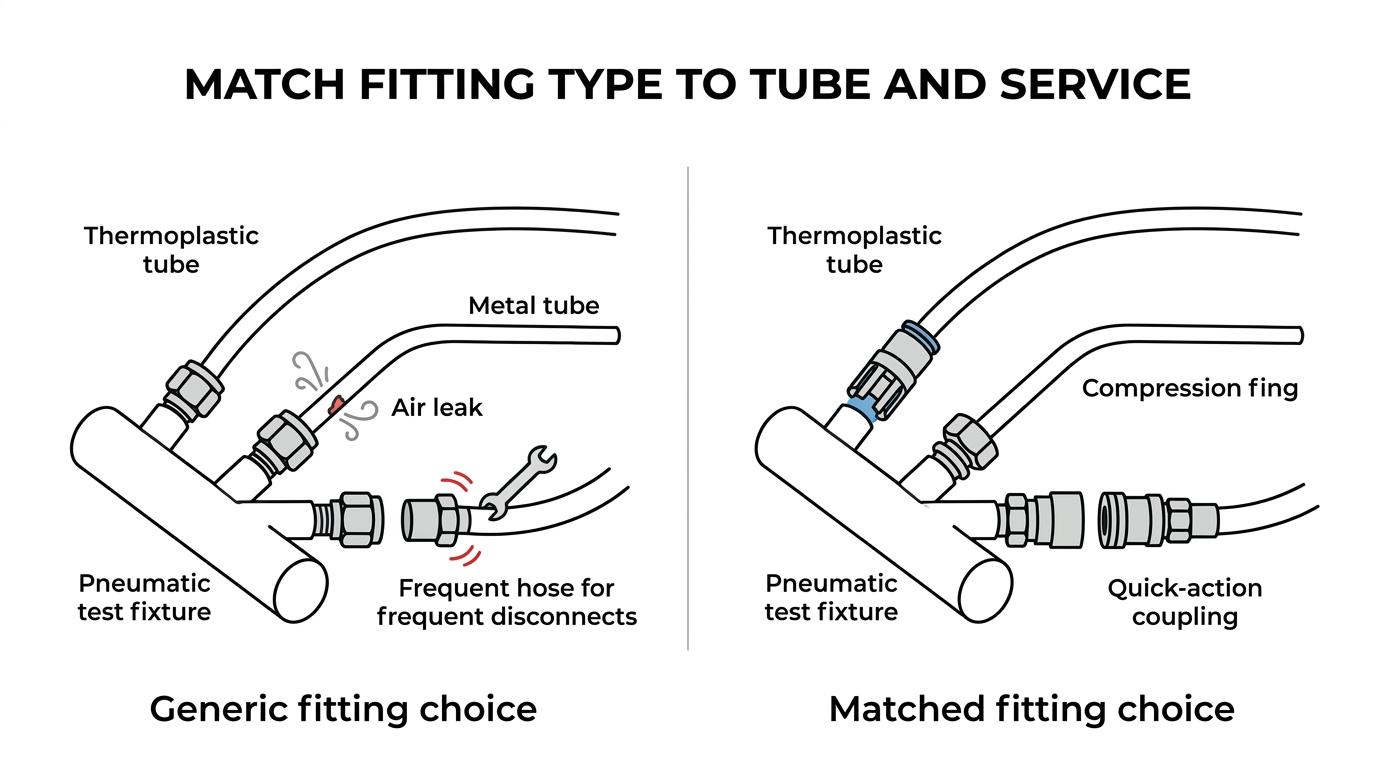

How do you match the fitting to the tube material and outside diameter?

Start with the tube, not the port. Thermoplastic tube usually points to push-in connector assemblies, while copper or other metal tube often points to compression or flare-style ends.

Step one is to confirm the tube material. ISO 14743:2020 covers complete push-in connector assemblies for thermoplastic tubes in pneumatic fluid power applications, including outside diameters from 3 mm to 16 mm and inch sizes. If the fixture uses nylon, polyurethane, or another thermoplastic tube, a push-in system is often the natural starting point.

Step two is to confirm the outside diameter exactly as specified. Do not let nominal language creep in. “Quarter-inch tube” is not enough if purchasing, assembly, and maintenance teams are working across inch and metric stock.

Step three is to match the tube-end technology to the use case. If the line will be assembled and reworked often, push-in may save labor. If the line is metal and expected to stay put under mechanical stress, compression or flare and inverted flare fittings may be a better fit.

Pro tip: tube OD and tube material belong on the BOM line item, not just in a fixture note.

When should you use push-in connectors instead of compression fittings?

Use push-in connectors when speed, serviceability, and frequent changeovers matter more than maximum mechanical robustness. Use compression fittings when the tube is metal or when stronger pull-out resistance matters more.

Push-in fittings use a collet grip and O-ring seal. That makes them attractive for bench fixtures, prototype cells, and any setup where technicians may reroute lines or replace a section quickly. They also work well when the fixture uses thermoplastic tube throughout.

Compression fittings seal by ferrule compression onto the tube. In practice, they tend to make more sense when the assembly uses metal tubing or when the connection should resist pull-out and remain stable over longer service intervals. The trade-off is slower installation and less tolerance for casual rework.

A common misconception is that push-in always means lower quality. It often just means the fixture was designed around a different tube and maintenance pattern.

When are inverted flare brass fittings better than standard compression or push-in options?

Industrial Parts Fittings is most relevant here when a fixture uses flared metal tube ends, established SAE-style tube assemblies, or higher-vibration service where inverted flare brass fittings make more sense than plain push-in connections. They are not a shortcut for plastic air tube.

Inverted flare brass fittings belong in the conversation when the fixture already has metal tubing with a formed flare, or when the designer wants a repeatable metal-to-metal seating geometry that can be serviced without cutting a new ferrule every time. They are familiar from brake line fittings and fuel line fittings, but the same flare and inverted flare fittings logic can carry into pneumatic fixtures that use rigid tube runs and maintenance access.

The gain is durability and a connection style that many technicians already recognize. The trade-off is setup discipline. If the flare is poorly formed, misaligned, or overtightened, the joint will not reward you. That is why many buyers compare these parts directly against compression tube fittings and push-in connectors rather than treating them as interchangeable brass adapters. If flared assemblies are on the table, the flare and inverted flare fittings category is a useful checkpoint during design review.

"Industrial Parts Fittings offers flare and inverted flare fittings alongside compression and push-in tube fittings, which matches how many OEM pneumatic fixtures mix connection types in one assembly."

A good rule is simple: if the tube end is already flared and the service environment favors rigid metal routing, inverted flare brass fittings deserve serious consideration. If the line is thermoplastic and changed often, push-in is usually the cleaner answer.

How should you evaluate quick-action couplings in a test fixture?

Choose quick-action couplings only when operators truly need rapid connection and disconnection. ISO 6150 matters because interchangeability, shutoff behavior, and working pressure directly affect fixture safety and uptime.

Start by asking whether the fixture really needs a coupling at all. If the connection is rarely broken, a permanent tube fitting is usually simpler and less leak-prone.

Then check the pressure class. ISO 6150:2018 applies to cylindrical quick-action couplings with maximum working pressures of 1 MPa, 1.6 MPa, and 2.5 MPa. If your test circuit approaches those boundaries, the pressure rating cannot be an afterthought.

Next, confirm interchangeability. ISO 6150 specifies dimensions and tolerances intended to keep plugs and sockets compatible within the relevant coupling family. If operators may grab replacements from crib stock, interchangeability becomes a purchasing issue as much as a design issue.

Pro tip: if a fixture is used by multiple shifts, standardizing the coupling family can reduce accidental mix-ups more than any training memo.

How do you prevent leaks at ports, gauges, and branch circuits?

Prevent leaks by treating the port, branch, and instrument connection as separate sealing points. Tees, gauge adapters, snubbers, and manifold isolation fittings each solve a different problem.

First, simplify the branch layout. Every extra adapter adds another leak path, so a compact tee or manifold approach is often better than stacking multiple small connectors.

Second, protect instruments from the circuit. Pressure-gauge snubbers can help where pulsation is present, and manifold isolation fittings make maintenance cleaner when a gauge or switch may need removal. Bench setups and temporary test stands often get into trouble when a gauge is threaded directly into a vibrating branch without any protection.

Third, separate thread retention from instrument protection in your thinking. A snubber is not a thread fix, and a sealant is not a vibration damper. If the fixture has repeated pressure spikes or frequent handling, pair the connection fitting with the right accessory rather than expecting one part to solve every issue.

What should go on the RFQ or BOM for pneumatic test fixture fittings?

Industrial Parts Fittings buyers usually get better results when the RFQ states port thread, sealing method, tube OD, tube material, pressure range, media, and service pattern. ISO-style nomenclature can also reduce rework between engineering, purchasing, and assembly.

ISO/TS 11672 establishes a nomenclature structure for threaded connectors, push-in connectors, quick-action couplings, port plugs, and other fitting families used in fluid power. That matters in procurement because “air fitting” is not a buying description. It is a delay.

When you release a BOM or RFQ, include details like these:

• Port thread: NPT, G-series, or another specified form.
• Seal method: thread sealant, captured seal, flare seat, ferrule compression, or O-ring push-in design.
• Tube callout: outside diameter, material, wall assumptions if critical, and inch or metric designation.
• Service conditions: pressure range, vacuum exposure, changeover frequency, vibration, and any gauge or branch hardware.

If the fixture might use flared metal tube, add a note directing buyers to the flare and inverted flare fittings category so compression and push-in options are not substituted by habit. That small line can prevent a surprising amount of rework.
