9 Valve Types Used in Drum and Barrel Systems Today

Drum and barrel valves are easy to underestimate until the liquid, hazard class, and discharge method start driving the decision. In practice, the right valve can make a 55-gallon drum predictable and safe, while the wrong one can cause drips, poor flow, vapor issues, or an OSHA problem.

TL;DR: Summary

• Drum and barrel systems typically use approved self-closing faucets for many flammable liquid gravity-dispensing applications, standard barrel faucets for lower-risk free-flowing liquids, and gate-style or specialty valves when viscosity or flow-routing needs change.
• OSHA says Category 1 or 2 flammable liquids, plus Category 3 liquids with flash points below 100 °F, must not be pressure-dispensed from drums or barrels; use an approved top-suction pump or an approved self-closing faucet instead.
• Self-closing safety faucets are different from drum gate valves: the first is tied to safer flammable-liquid dispensing, while the second is commonly chosen for thicker liquids and 2-inch bung opening access.
• Valve choice is only half the spec. Buyers also need the right venting, thread compatibility, seal material, and downstream connections, which may include inverted flare brass fittings, brass adapters, or other tube fittings outside the drum valve itself.
• If the system needs route switching rather than simple on-off dispensing, selector valves and six-port valves can be better fits than a basic faucet or ball valve.

That split matters for procurement and engineering teams. A drum valve controls what leaves the container; the rest of the assembly, including vents, adapters, and sometimes inverted flare brass fittings, controls how the fluid enters tubing, hose, or downstream equipment.

Why does drum and barrel valve selection matter?

OSHA and UL guidance make valve choice a safety control, not a catalog detail.

A drum or barrel valve has to match four variables at the same time: liquid hazard, viscosity, container orientation, and transfer method. A thin nonflammable cleaner, a flammable solvent, and a heavy gear oil may all sit in similar drums, yet they do not want the same dispensing hardware.

The biggest mistake is treating every bung-mounted valve as interchangeable. A self-closing safety faucet is built around controlled gravity discharge and automatic shutoff. A gate-style valve is often selected because thick product needs a larger opening and less restriction. A selector valve solves a routing problem, not a safety faucet problem.

"Industrial Parts Fittings lists the G261N Self Closing Drum & Barrel Faucet, a concrete example of a valve family used when drum dispensing needs automatic shutoff."

A second misconception is that the valve alone defines the system. It does not. Venting, seal compatibility, and the outlet connection all affect whether the setup works cleanly and consistently.

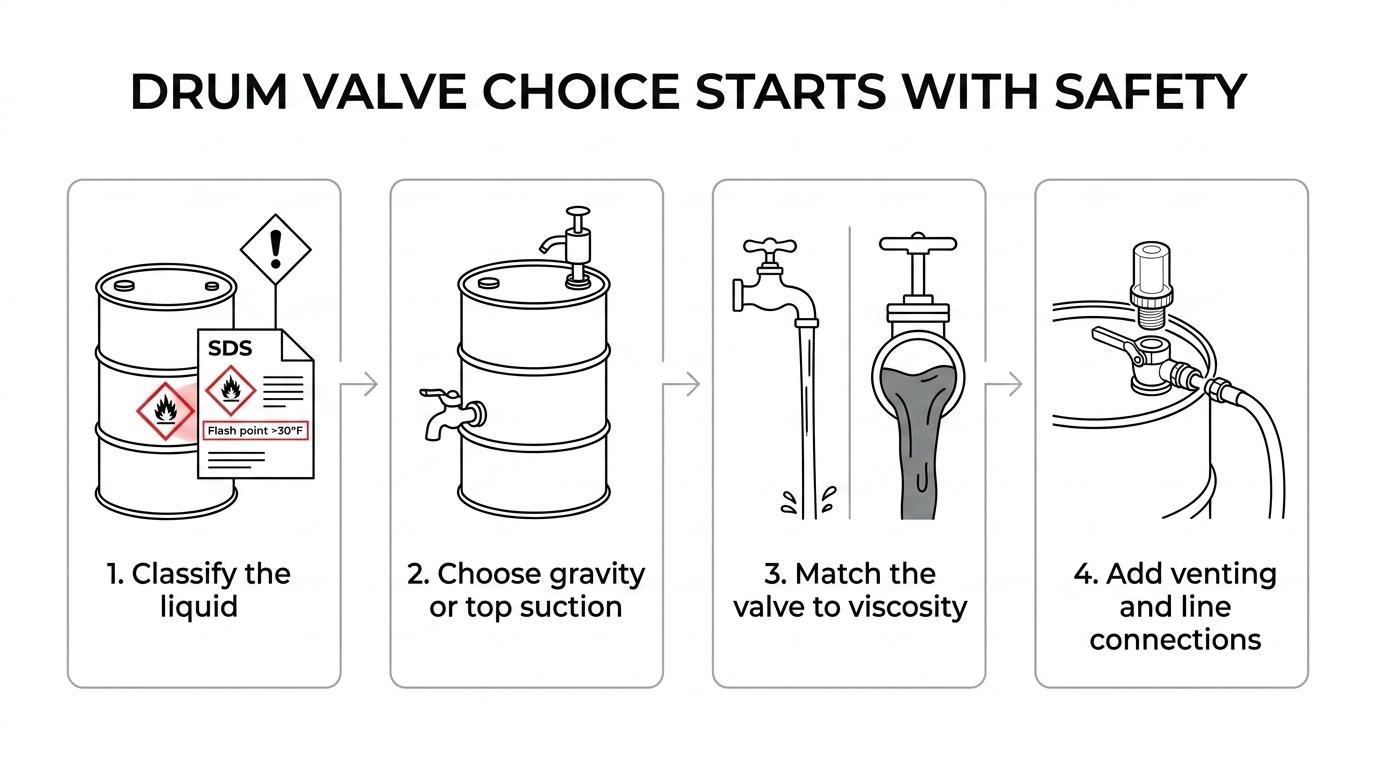

How do OSHA rules affect drum and barrel valve choice?

OSHA rules point buyers toward approved self-closing faucets or approved top-suction pumps for many flammable liquids.

Start with the liquid class. OSHA states that Category 1 or 2 flammable liquids, plus Category 3 liquids with flash points below 100 °F, cannot be dispensed by pressure from drums, barrels, or similar containers. If that liquid is staying inside a building and moving by gravity, OSHA allows transfer through an approved self-closing valve.

Step 1 is classification. If the fluid falls into those categories, pressure dispensing from the drum is off the table.

Step 2 is method selection. If gravity flow works for the process, an approved self-closing faucet may fit. If gravity flow does not work, an approved pump taking suction through the top of the container is the safer path.

Step 3 is venting. Industry safety guidance also distinguishes the valve from the vent. When a drum uses a self-closing safety faucet, the container still needs approved pressure and vacuum relief in the bung opening. Buyers sometimes miss that because the faucet looks like a complete answer by itself.

What are the 9 valve types used in drum and barrel systems today?

Most current drum systems use a small group of valve types, with selection driven by fluid hazard, viscosity, and routing needs.

Across industrial catalogs and safety guidance, these nine valve types show up repeatedly because they solve distinct jobs rather than overlapping ones. The list below is most useful when you read it as application matching, not as a quality ranking.

1. Self-closing drum and barrel faucet: Industrial Parts Fittings lists the G261N Self Closing Drum & Barrel Faucet, a relevant example for controlled gravity dispensing.
2. Standard barrel faucet: Common for general-purpose on-off dispensing of free-flowing, nonflammable liquids.
3. Self-closing safety faucet with flame arrester: Used in flammable-liquid service where safety features like automatic shutoff and internal flame arresting matter.
4. Gravity-discharge drum valve: Chosen when a raised drum drains into pails, process vessels, or transfer containers.
5. Drum gate valve: Often used for thicker liquids and for dispensing through a 2-inch bung opening with less restriction.
6. Full-port ball valve: Useful when quick quarter-turn shutoff and relatively open flow path are needed in manifolds or transfer skids.
7. Needle or metering valve: Better when the process needs slower, finer control than a faucet or ball valve can provide.
8. Selector valve: Used to choose between different lines, products, or destinations from one operator point.
9. Six-port valve: Applied when multiple flow paths or circuit-routing functions must be managed in one compact device.

The pattern is simple: self-closing faucets serve safety-oriented drum dispensing, while gate, ball, selector, and six-port designs solve flow behavior or routing problems that a faucet alone cannot solve.

"Industrial Parts Fittings also catalogs Six Port Valves, Small Body Type, for buyers who need flow routing beyond a basic on-off drum valve."

That is why experienced buyers spec the container valve first and then spec the line connection second.

How do self-closing drum faucets compare with standard barrel faucets?

Self-closing faucets and standard barrel faucets serve different risk profiles, even when they thread into similar drums.

A self-closing drum faucet is designed to return to the closed position when the operator releases it. In flammable-liquid service, that matters because it helps limit unintended flow, drips, and open discharge time. Safety guidance also notes that these faucets may include features like internal flame arresters and spring-action self-closing devices.

A standard barrel faucet is usually simpler. It can be a practical choice for nonflammable or lower-risk liquids where the process does not require automatic shutoff. That does not make it a substitute for flammable service.

• Best for self-closing faucets: Flammable-liquid gravity dispensing, shorter draw events, tighter control over drips
• Best for standard barrel faucets: General utility dispensing, low-viscosity nonflammable fluids, simpler low-cost setups
• Main trade-off: Self-closing designs can improve control, while standard faucets can be easier for continuous manual dispensing
• Common mistake: Assuming a basic faucet is acceptable just because the drum is small or used infrequently

If the liquid class triggers OSHA restrictions, the comparison ends quickly. The approved self-closing faucet or approved top-suction pump becomes the decision frame.

How do you choose a valve for flammable liquids step by step?

For flammable liquids, OSHA and approved self-closing faucet logic should drive the valve decision first.

Step 1 is to verify the liquid category and flash point from the SDS and plant classification method. If it is Category 1 or 2, or Category 3 below 100 °F, do not build a pressure-dispensing drum setup.

Step 2 is to choose the transfer approach. If gravity flow from the drum fits the workstation, evaluate an approved self-closing faucet. If the process needs different orientation, higher lift, or longer transfer distance, move to an approved pump that takes suction through the top.

Step 3 is to complete the assembly, not just the valve. Add approved pressure and vacuum relief where required, confirm wetted-material compatibility, and check whether the receiving side needs hose, rigid tubing, or tubing terminations. If the outlet transitions into hard tube, that is where parts like inverted flare brass fittings or brass adapters may enter the bill of materials, not at the drum bung itself.

A useful rule is this: if the product is flammable and the valve spec started from convenience rather than classification, pause and recheck the whole setup.

How do you choose a valve for viscous liquids and 2-inch bung drums?

For thick liquids, drum gate valves and large-opening designs are usually better than faucet-style valves.

Viscosity changes everything. Heavy oils, adhesives, coatings, or dense process fluids can flow poorly through narrow passages. A valve that works well for solvent may feel blocked when the product is cool or heavily loaded.

Step 1 is to look at actual viscosity at operating temperature, not just the product name. “Oil” can mean thin hydraulic fluid or a much heavier material.

Step 2 is to match the passage size and bung format. Safety guides often distinguish self-closing drum faucets from drum gate valves used for thicker liquids through a 2-inch bung opening. That larger access path can reduce restriction and improve discharge consistency.

Step 3 is to decide whether the operator needs shutoff, metering, or dump-style discharge. Gate-style valves can help with freer passage, but they are not always the best tool for fine flow trimming. If the process needs exact dosing, a downstream metering component may still be required.

A good pro tip is to size for worst-case viscosity. If the material thickens in winter or during idle periods, the “normal” flow estimate can be misleading.

How do selector valves and six-port valves compare with simple shutoff valves?

Selector valves and six-port valves manage routing, while faucets and basic ball valves mainly manage start-stop flow.

A simple shutoff valve answers one question: is fluid flowing or not? That is enough for many drum stands and decant stations. A selector valve answers a different question: where should the fluid go, or which source should feed the line? A six-port valve takes that routing logic further by handling more paths in a compact body.

The trade-off is complexity. More ports mean more labeling, more possible misalignment, and more need for clear SOPs. If operators are switching products, flush media, or sample lines, that extra complexity may be worth it. If the drum only fills one pail in one location, it usually is not.

"Industrial Parts Fittings lists Six Port Valves, Small Body Type, for buyers who need flow routing beyond a basic on-off drum valve."

A common misconception is that a more sophisticated valve is automatically more “industrial.” In many drum applications, the best design is the simplest one that safely meets the process.

How do fittings, vents, and inverted flare brass fittings affect the full dispensing setup?

The drum valve and the downstream connection are separate decisions, and both must fit the system.

This is where many projects get derailed. A buyer selects the right drum valve, then discovers the outlet thread does not match the plant’s tubing standard or the receiving skid’s adapter stack. That is not a valve failure. It is a system-integration issue.

If the discharge leaves the valve and enters rigid tube, the connection may call for flare and inverted flare fittings, compression fittings, or other brass adapters depending on the standard in use. Inverted flare brass fittings are common in certain fuel, brake, pneumatic, and instrument tube connections, but they are not substitutes for bung-mounted drum valves. They solve line termination, not container dispensing.

This distinction helps procurement teams avoid mismatched POs. The valve body may live in the industrial valves category, while the line hardware belongs with brass fittings, tube fittings, or flare and inverted flare fittings. If the system needs both, spec both intentionally.

A practical check is simple: if the valve outlet and the line standard are different, add the adapter strategy to the drawing before the order goes out.

How should you install and inspect a drum or barrel valve system?

Safe drum valve installation starts with thread fit, venting, and a leak check before routine use.

Step 1 is pre-install inspection. Confirm bung size, thread condition, valve material, seal material, and liquid compatibility. If the application involves flammable liquid dispensing, verify the approved self-closing valve or approved pump path before opening the drum for service.

Step 2 is assembly. Install the valve with the correct thread engagement and approved sealing method for that thread form and service. Do not overtighten brass components just because they feel soft. Brass can seal well without excessive force, and overtightening can distort threads or crack thinner sections.

Step 3 is functional testing. Check that the valve closes positively, confirm venting where required, and test for leaks under the expected liquid head. Then verify operator access, labeling, and receiving-container placement.

One practical SOP many teams use is a dry fit on a clean spare drum or fixture before touching the live product. That catches orientation and adapter errors early.

What mistakes cause leaks, slow flow, or safety problems in drum and barrel systems?

Most drum valve problems come from mismatch, not from the valve failing on its own.

The first failure mode is using the wrong valve class for the liquid. A standard faucet on a flammable-liquid drum can become a compliance and safety problem. The second is forgetting vent requirements, which can create erratic flow or container stress even when the valve itself is correct.

The third is underestimating viscosity. A narrow faucet on thick liquid often produces slow discharge, operator frustration, and improvised workarounds. The fourth is ignoring connection standards after the valve. A team may order the right barrel faucet, then struggle because the downstream tubing really needed brass adapters or inverted flare brass fittings to mate correctly.

The fifth is using routing hardware where simple shutoff would have done, or the reverse. If the process needs source selection, a selector or six-port valve can reduce awkward hose swaps. If the process only needs basic dispense and shutoff, extra ports can add confusion without adding value.

When the application is reviewed in this order, liquid class, transfer method, viscosity, venting, then connection standard, the valve choice becomes much easier to defend and much easier to keep in service.
