How to Match Brass Alloys to Water Quality Conditions

Choosing a brass alloy for water service is less about habit and more about chemistry, certification, and failure mode.

A part can machine beautifully, seal well, and still be the wrong fit for the water it touches. That is true for valves, adapters, tube fittings, and even inverted flare brass fittings when they are used in a wetted assembly. The best choice depends on three questions: Is the service potable, what does the water chemistry look like, and how much corrosion risk can the system tolerate over time?

For industrial buyers and engineers, that shifts the conversation away from “standard brass” as a default. A better process starts with lead limits, then moves to lead leaching and corrosion behavior under real water conditions.

Water quality factors that affect brass alloy performance

Water quality affects brass in more than one way. Most teams first think about lead content, which is the right starting point for drinking water. After that, the next layer is corrosion. EPA describes corrosion in plumbing as metal dissolving or wearing away because of a chemical reaction between water and plumbing materials. In brass, one of the recurring risks is dezincification, where zinc is selectively removed from the alloy and the part loses strength and integrity.

Chloride exposure gets a lot of attention for good reason. ASTM literature has long treated chloride media, including sodium chloride solutions, as meaningful environments for predicting dealloying behavior in brass. Low pH, higher temperature, stagnation, and residual stress from installation or forming can also move a system toward trouble faster than many specifications assume.

That means alloy selection should follow the water, not just the thread type or tube size.

Common water-quality checks include:

• Chloride level
• pH range
• Operating temperature
• Stagnation time
• Disinfectant residuals
• Flow cycling
• Installation stress
• Potable vs. non-potable exposure

Lead-free brass requirements for potable water systems

If the fitting or valve will contact drinking water, lead free is the first gate. Under the Safe Drinking Water Act, EPA defines lead-free for pipes, pipe fittings, plumbing fittings, and fixtures as a weighted average of not more than 0.25% lead across wetted surfaces. EPA also states that solder and flux are limited to no more than 0.2% lead.

That weighted-average language matters. It is not enough to hear that a raw material is “low lead” in casual terms. The full wetted assembly has to satisfy the legal threshold. For procurement teams, that usually means asking for the product certification and not relying only on a material shorthand in a catalog description.

NSF certification language matters too. NSF/ANSI/CAN 61 addresses health-effects requirements for products and materials used in drinking water systems, including contaminants and impurities that can be imparted to the water. EPA has also made clear that plumbing products introduced into commerce for potable use must be certified as lead free. So certification is not a nice-to-have label for drinking water parts. It is part of the compliance framework.

NSF has also added brass rod alloy references in Annex N-2 to help specifiers source materials intended to support lower lead leaching and continued compliance with NSF 61 requirements. That is useful when a design team wants a clearer path from alloy selection to finished-product compliance.

Dezincification risk in chloride, pH, and temperature exposure

Lead limits and corrosion resistance are related, but they are not the same issue.

A fitting can be lead-free and still struggle in aggressive water. Chlorides can promote dezincification in susceptible brass alloys. Acidic water can increase attack rates. Higher temperature often speeds up corrosion reactions, which is one reason warm recirculating potable systems deserve more caution than a cold branch line in stable municipal service.

The practical result is simple: when the chemistry gets harsher, the brass alloy has to work harder. In many potable systems, a certified lead-free brass product is the right starting point. In chloride-rich, low-pH, or warmer service, buyers often move toward dezincification-resistant brass or, when the risk is high enough, toward a different corrosion-resistant material entirely.

This is also where system context matters. A brief exposure to utility water during maintenance is not the same as constant immersion. A fitting on an intermittently used washdown skid sees different conditions than a permanently wetted manifold. The correct material callout should reflect that.

Matching brass alloys to water quality conditions

A quick comparison table can help frame the first material conversation.

The phrase “good starting choice” is intentional. Water quality rarely fits neat labels. Two municipalities can both deliver potable water and still present different chloride levels, temperature profiles, or corrosion-control conditions. A well system can vary by season. A skid manufacturer may see different feedwater depending on the end user’s site.

That is why the best specifications ask for both the product certification and a short water-quality summary before final material approval.

How inverted flare brass fittings fit into water-quality decisions

Connection geometry and alloy selection should be reviewed separately.

When a drawing calls for inverted flare brass fittings, the flare design may be exactly right for assembly, vibration resistance, and serviceability. Yet the water-quality question is still open. If those fittings are on a drinking-water path, the same lead-free and NSF review applies as it would for any other wetted brass component. If they are on a non-potable utility line, corrosion resistance may matter more than potable certification, but the chemistry review still should not be skipped.

This is an easy place for teams to get tripped up. Inverted flare fittings are often associated with fuel line fittings, brake line fittings, and mechanical tube connections. That familiarity can cause a buyer to carry over a material choice into a water application without asking whether the exact product is certified for potable use. A brass adapter that works well in air, fuel, or hydraulic accessory service may not be the right answer for drinking water.

When reviewing flare and inverted flare fittings, treat the listing as the starting point for geometry, size, and configuration. Then confirm whether the specific part is intended for wetted potable service, whether it is lead free, and whether chloride exposure suggests a move toward DZR brass or another corrosion-resistant option.

If product photos, cut sheets, or CAD images show inverted flare brass fittings, use that as a geometry cue, not as proof of water-service suitability.

A useful review looks like this:

• Service path: potable water, non-potable water, condensate, or mixed utility service
• Certification: NSF/ANSI/CAN 61 or other required potable approval
• Lead limit: 0.25% weighted average across wetted surfaces
• Chemistry risk: chlorides, pH, temperature, stagnation
• Failure mode: lead leaching, dezincification, cracking, or external corrosion

Procurement questions for brass alloy selection in water service

Good buying decisions often come down to the questions asked before the PO is released. If the answer to any one of these is missing, the spec may still be incomplete.

The most common gap is assuming the material line on a print tells the full story. It rarely does. A part can be described broadly as brass while the real performance difference sits in its certification status, alloy family, or resistance to dezincification.

Key questions for suppliers and internal teams include:

• Is the product actually wetted: or is it only adjacent to the water stream?
• Is the application potable: or only utility/process water?
• What certification is available: and does it apply to the finished product, not just the rod or forging stock?
• What water data is known: chloride range, pH, temperature, treatment program
• What is the replacement cost of failure: nuisance leak, contamination event, shutdown, or safety issue

There is also value in separating short-term price from life-cycle cost. A lower-cost brass fitting may look attractive until aggressive water drives premature replacement, field labor, and call-backs. In many systems, moving up one level in alloy performance is cheaper than one unscheduled repair.

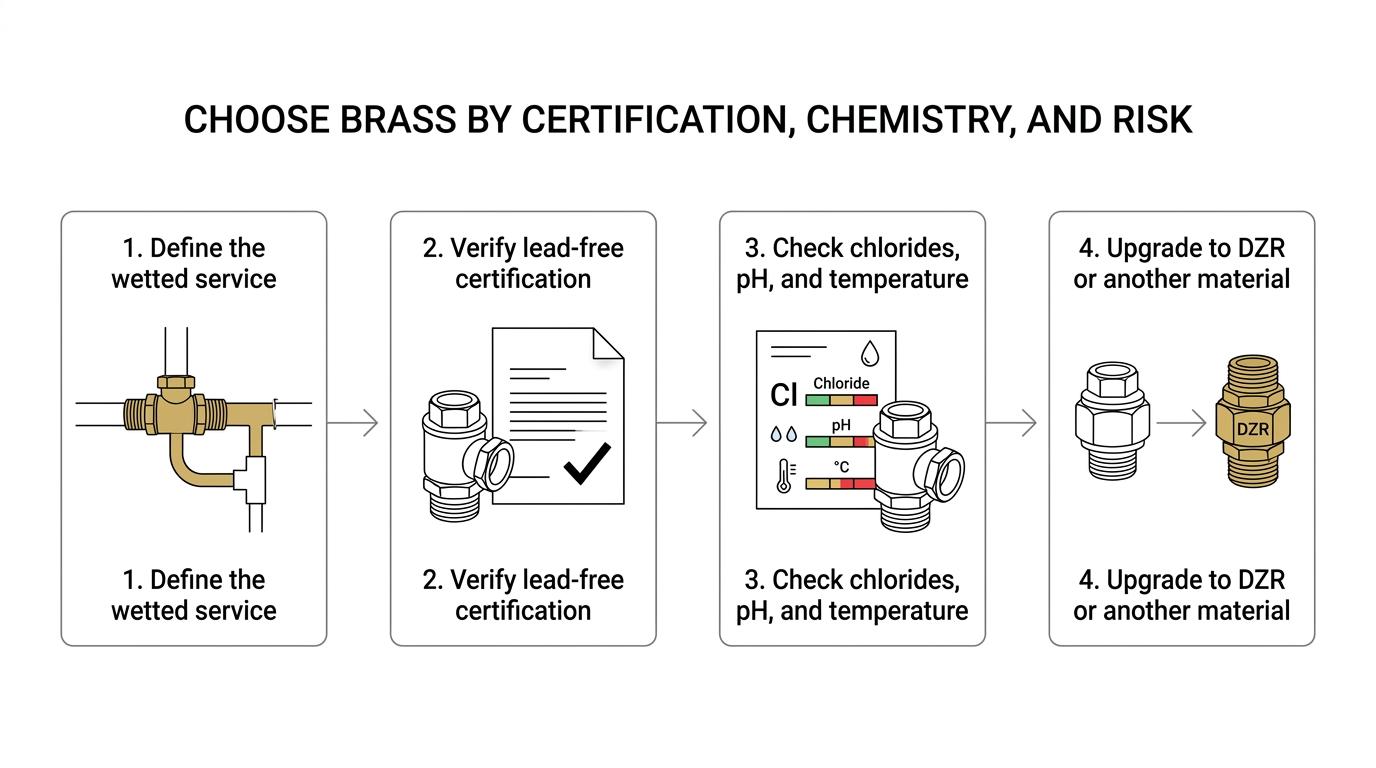

Specification workflow for engineers, buyers, and OEM teams

A simple workflow keeps the material review practical.

1. Identify whether the part touches drinking water and define the full wetted path.
2. Confirm lead-free compliance at the assembly level, using the weighted-average rule for wetted surfaces and the required certification for potable products.
3. Review water chemistry, with extra attention to chloride level, pH, and operating temperature.
4. If corrosion risk is uncertain or elevated, step up from basic lead-free brass to dezincification-resistant brass, or move beyond brass if the service justifies it.

That process works for valves, adapters, manifold ports, and inverted flare brass fittings alike. It also creates a cleaner handoff between engineering, sourcing, quality, and field service.

When brass alloys are matched to real water conditions, specifications get sharper, compliance risk drops, and installed parts tend to stay in service longer with fewer surprises. That is the kind of materials decision that pays back long after the quote is approved.
