How to Read Brass Fitting Sizes, NPT, Tube OD, Hose ID and Dash Sizes

Reading brass fitting sizes looks simple until the first time a “1/4 in.” part shows up and does not match the assembly in front of you.

That confusion is common because brass fittings are sold through several sizing systems at the same time: NPT thread size, tube outside diameter, hose inside diameter, and dash sizes used in hydraulic fittings and adapters. A 1/4 NPT male, a 1/4 tube OD compression fitting, and a 1/4 hose barb are all real products, and they are not interchangeable.

For buyers, technicians, and engineers, the fastest way to avoid returns and field delays is to separate two questions before ordering: what connection style is this, and what feature is actually being sized? Once that becomes routine, brass pipe fittings, compression fittings, flare fittings, hose barbs, and pneumatic fittings become much easier to identify.

Why brass fitting sizes cause so much confusion

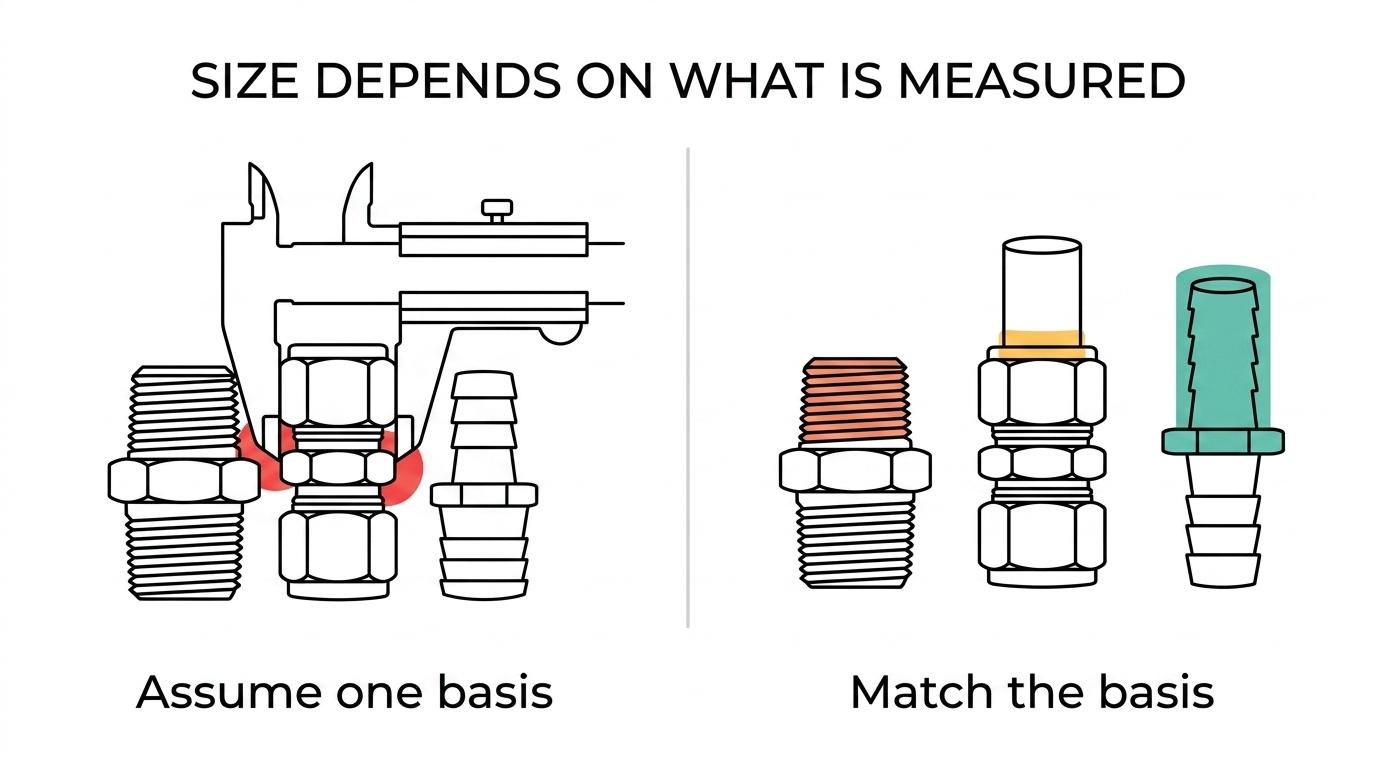

The biggest source of trouble is that the number on the fitting often does not describe the same physical feature from one product family to another. Pipe threads use a nominal designation. Tube fittings usually size by actual tube OD. Hose fittings usually size by hose ID. Dash numbers compress another sizing convention into shorthand.

That means the number alone is incomplete.

A fitting marked 1/4 may refer to the thread designation, the tube diameter, or the hose bore. When someone says “I need a quarter-inch brass fitting,” the correct response is usually a follow-up question, not a part number.

The four main brass fitting size systems

Most brass fittings used in fluid, air, fuel, and general industrial service fall into four sizing methods.

This is why one fitting body can legitimately carry two different size references at once. A part described as 3/8 tube x 1/4 NPT male uses tube OD on one end and pipe thread nomenclature on the other.

How to read NPT sizes on brass pipe fittings

NPT stands for National Pipe Taper. It is one of the most common sizing systems in U.S. brass fittings, and it trips up new buyers because the nominal size does not equal the measured thread diameter.

A 1/4 NPT male thread does not measure 0.250 inches across the outside. The designation traces back to pipe sizing conventions, not the literal outside thread diameter. So when you measure an unknown pipe thread and see a diameter larger than the nominal label, that is normal.

In practice, reading NPT correctly means checking three things together: the nominal size, the thread pitch, and the taper thread form.

After you identify the fitting as a tapered pipe thread, use this sequence:

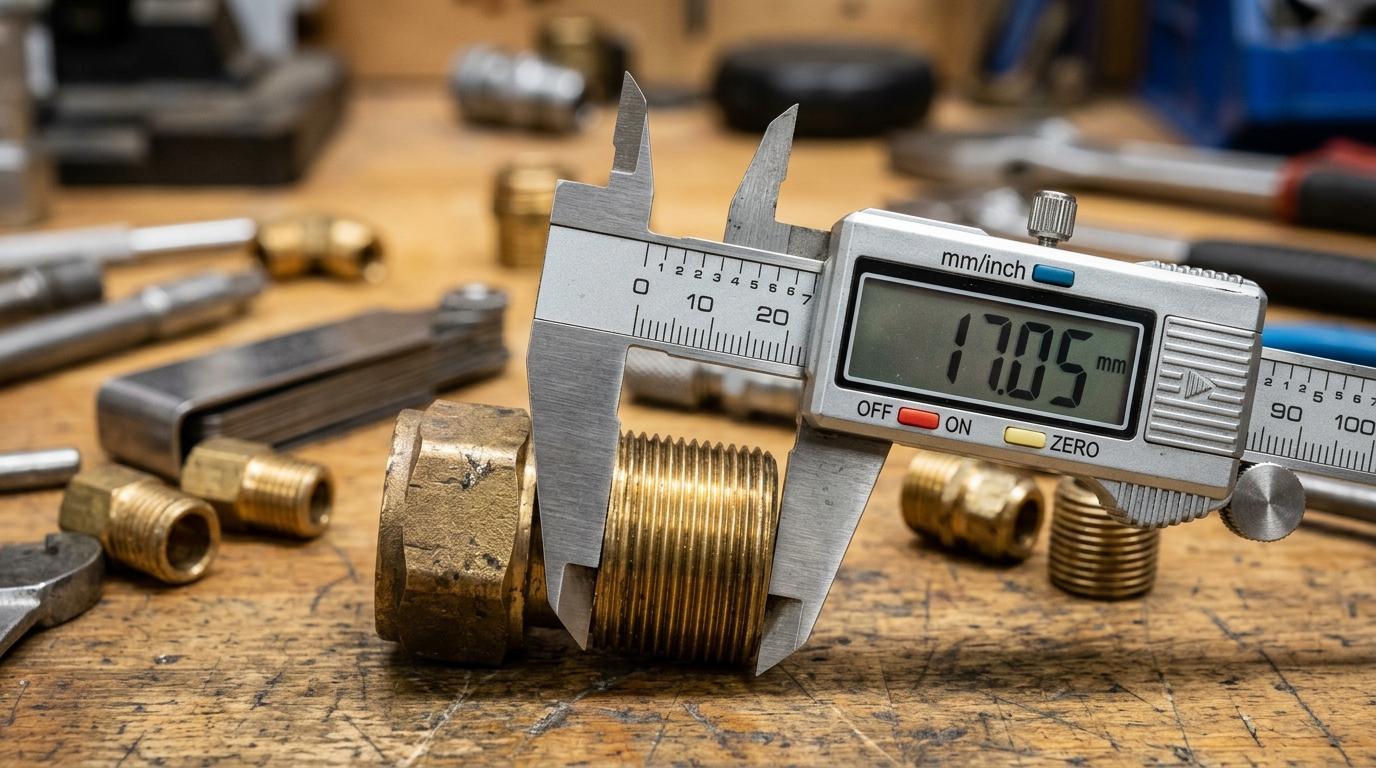

• Measure the male thread OD: use calipers on the outside thread
• Count the threads per inch: use a thread gauge if possible
• Match the thread family: confirm it is NPT and not BSPT or another look-alike system
• Check the callout format: 1/4-18 NPT means 1/4 nominal size, 18 TPI, NPT thread

A few common examples help anchor the pattern.
1/8 NPT uses 27 TPI, 1/4 NPT uses 18 TPI, 3/8 NPT also uses 18 TPI, and 1/2 NPT uses 14 TPI.

That shared pitch between some sizes is another reason diameter and pitch must be checked together.

How tube OD sizing works for compression fittings and flare fittings

Tube-based brass fittings usually size by the actual outside diameter of the tube. This is standard for many compression fittings, instrumentation fittings, and many flare fittings.

If the tube measures 0.375 inches OD, you are generally looking for a 3/8 tube fitting, not a fitting chosen by pipe thread nomenclature.

This matters a great deal with copper tube, aluminum tube, and plated steel tube assemblies. In tube systems, the seal geometry is built around the tube outside diameter. Compression fittings depend on the ferrule gripping the tube correctly. Flare fittings depend on tube OD plus the correct flare geometry.

When measuring a tube assembly, focus on the tube itself first.

• Tube outside diameter
• Tube wall condition
• Flare angle if present
• Any secondary threaded end on the fitting body

One caution deserves extra attention: nominal copper plumbing sizes do not always match actual tube OD in the way many buyers expect. A tube called 1/2 nominal copper is not the same thing as a 1/2 OD tube. If the brass fittings catalog calls for tube OD, measure the real outside diameter rather than relying on the trade name alone.

How hose ID sizing works for brass hose barbs

Hose barb sizing works from the opposite direction. Instead of matching a rigid tube’s outside diameter, the fitting is chosen to suit the hose’s inside diameter.

So a 3/8 hose barb is intended for 3/8 inch ID hose.

That does not mean every 3/8 hose will fit every 3/8 barb in the same way. Hose material, wall thickness, reinforcement, and temperature all affect fit. Soft rubber may stretch more easily than reinforced thermoplastic. In lower pressure service, that difference can be manageable with the right clamp. In more demanding applications, it can change the fitting choice completely.

This is one reason industrial buyers should think beyond the barb size alone. Hose material and retention method matter just as much as nominal hose ID.

How dash sizes work in hydraulic fittings and adapters

Dash sizes are common in hydraulic fittings, hose assemblies, and JIC-style brass adapters. In many product families, the dash number represents sixteenths of an inch.

That creates a quick shorthand:

A -6 fitting often points to a 3/8 inch size family, but dash size is not universal across every brass fitting category. It is highly useful in hydraulic fittings and hose systems, yet it still needs to be checked against the exact connection type and standard.

A -6 JIC female and a 3/8 hose barb are not the same part just because both land in the 3/8 range.

How to read combined brass fitting callouts correctly

Many brass fittings are adapters, which means each end uses a different standard. This is where people often stop reading too early.

Take this example: 1/4 tube OD x 1/8 NPT male.

The first half tells you the tube side is sized for 1/4 inch OD tubing. The second half tells you the threaded side is a 1/8 NPT male pipe thread. Each end must be read separately, and each end must be measured according to its own system.

The same rule applies to parts like these:

• 3/8 hose barb x 1/4 NPT male
• -6 JIC x 1/4 NPT female
• 6 mm tube x R1/8 thread
• 1/2 tube x 1/2 male flare

If one end matches and the other does not, the part is still wrong.

That may sound obvious, yet it is one of the most common causes of purchasing errors in brass adapters, pneumatic fittings, and hydraulic fittings.

Common mistakes when measuring brass fittings

Most sizing problems come from a short list of habits. The good news is that they are easy to correct once you know what to look for.

• Matching by the inch number alone: a 1/4 NPT fitting is not the same as a 1/4 tube fitting
• Measuring threads without checking pitch: 1/4 NPT and other thread families can look close at a glance
• Assuming nominal copper equals actual OD: tube systems should be checked with calipers
• Ignoring the seal style: compression fittings, flare fittings, and hose barbs seal in completely different ways
• Treating dash sizes as universal: dash shorthand works well in many hydraulic catalogs, but not across every product family

One more issue shows up often in maintenance environments: reusing an old sample as the only reference. Samples help, but a worn or damaged fitting can hide the details you need, especially on threads and flare seats.

A practical method to measure unknown brass fittings

When the part in hand is unidentified, a disciplined process saves time.

Start by deciding what kind of fitting it is. Is it a pipe thread, a compression fitting, a flare fitting, a hose barb, or a push-to-connect pneumatic fitting? Once the category is clear, the measuring points become much more obvious.

Then use the right tools. Calipers are almost mandatory. A thread pitch gauge is highly useful. For flare fittings, inspect the seat and angle. For hose barbs, measure the hose or confirm the intended hose ID from assembly records.

A simple shop workflow looks like this:

1. Identify the sealing style
2. Measure the correct feature, not the most visible feature
3. Verify thread family and pitch if threads are involved
4. Read each end independently on adapters
5. Confirm material and compliance needs for the application

That last step matters more than many people expect. Lead free brass fittings for potable water, D.O.T.-related air brake fittings, and application-specific pneumatic fittings may require compliance checks that go beyond dimensions alone.

What industrial buyers should confirm before ordering brass fittings

Before placing a PO or releasing a replacement part to maintenance, confirm the information that actually controls fit and function.

• Connection type: NPT, compression, flare, hose barb, push-to-connect, JIC
• Size basis: nominal thread size, tube OD, hose ID, or dash size
• Thread details: NPT, BSPT, BSPP, metric, UNF, plus pitch
• Seal geometry: 37 degree flare, 45 degree flare, ferrule seal, thread sealant, O-ring
• Application needs: pressure, media, vibration, temperature, compliance

That short checklist is often the difference between a correct brass fitting and a costly near-match.

When the callout is complete, brass fittings stop being confusing. They become a precise language: one part describes the connection family, the measurement basis, the seal style, and the application fit. Read all four, and sizing becomes much more predictable.
