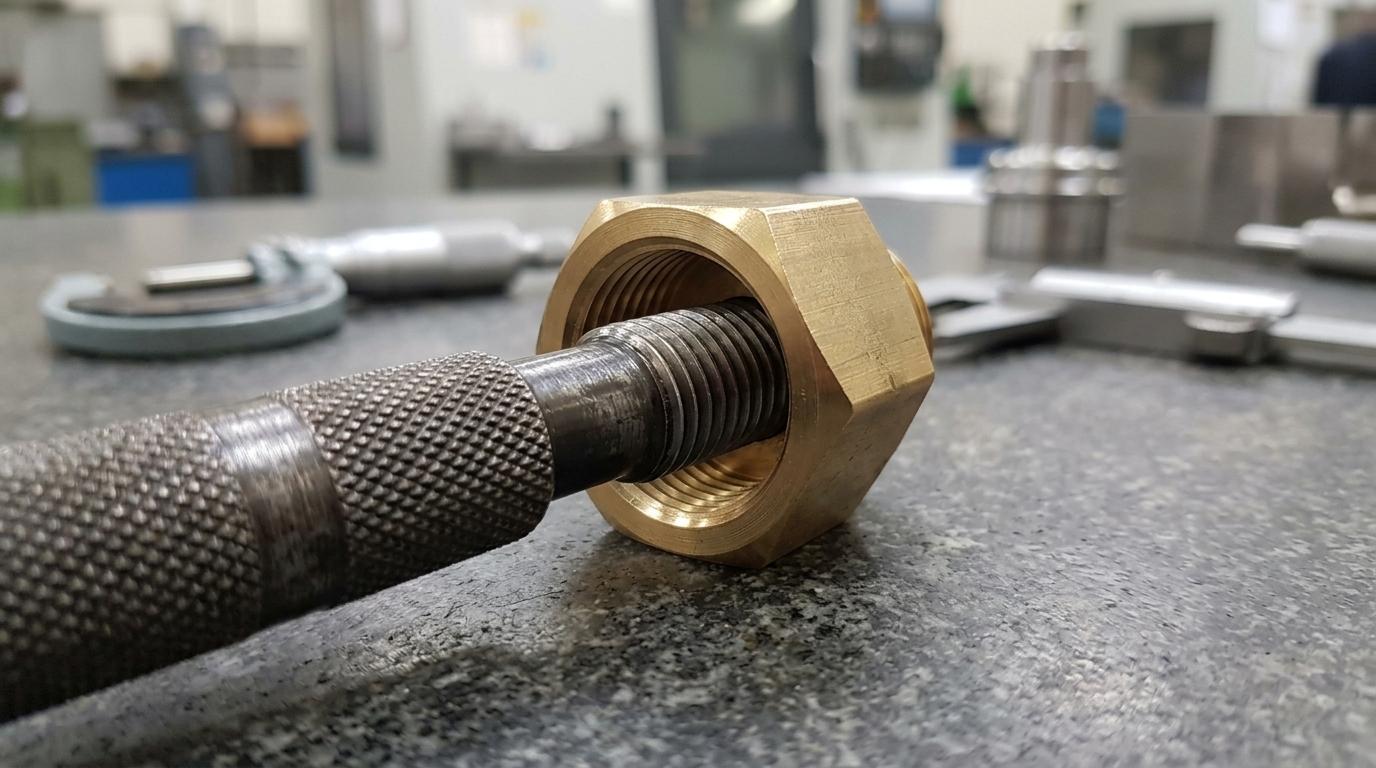

Custom Brass Fittings Manufacturing (Prototypes to Production)

When a standard fitting will not do, a custom brass component can solve the problem at the source. The right geometry, thread form, bore size, sealing surface, and material grade can improve assembly speed, reduce leak risk, and keep a system consistent across every unit in the field.

Industrial Parts Fittings supports custom brass fittings manufacturing from early prototype work through repeatable production, with U.S.-made capability for standard and specialized fluid and air control components. That includes design review, machining strategy, alloy selection, production planning, finishing, and quality checks built around real operating demands.

Custom brass fittings manufacturing for prototype and production needs

Custom brass fittings are often driven by practical issues, not abstract design goals. An OEM may need a nonstandard adapter to fit a tighter envelope. A maintenance team may need a replacement part that matches legacy equipment. A distributor may need a private-label variation of an existing fitting with specific threads, lengths, or plating.

That is where a prototype-to-production approach matters. Early samples confirm fit and function before larger runs begin, and production planning helps avoid the common problem of a prototype that works well once but becomes difficult or expensive to scale.

Brass remains a strong material choice because it machines cleanly, resists corrosion in many service environments, and supports tight, repeatable features. It also offers flexibility across industries that use air, water, fuel, oil, hydraulic fluid, refrigerant, or inert gas systems.

After the application is reviewed, custom requirements often include:

• Special thread forms

• Hex, flats, grooves, and wrench features

• Port geometry changes

• Lead-free material options

• Nickel or chrome plating

• Critical fit requirements: mating part compatibility, sealing face dimensions, assembly clearance

• Performance requirements: pressure resistance, corrosion behavior, flow path, media compatibility

• Production requirements: repeatability, packaging needs, delivery windows, lot sizing

Custom brass fitting design and prototyping process

The first step is usually a drawing, sample part, or even a rough concept. From there, the design can move into CAD review and manufacturability evaluation. This stage is where many cost and lead-time gains are made, because small changes to wall thickness, thread length, corner transitions, or tool access can simplify the entire job.

A good prototype phase is not just about speed. It is about confirming whether the part should be machined from bar stock, made from a forged blank and finish-machined, or built with a different production path once volume rises. That decision affects price, consistency, and long-term delivery performance.

Simple prototype parts can often move quickly, while more complex fittings may require additional revisions, inspection steps, or special tooling. In many cases, the most efficient path is a short prototype run followed by a controlled pilot batch before full production.

Custom brass fittings manufacturing timeline

Lead time depends on part complexity, alloy availability, quantity, finishing, and whether new tooling is required. Still, most projects follow a recognizable sequence.

Projects that use existing processes and common alloys can move faster. Parts that require new dies, unusual thread standards, or regulated lead-free material may take longer, though the extra planning often prevents delays later.

Brass alloys and material options for custom fittings

Material choice shapes both performance and manufacturability. A fitting used in a pneumatic circuit has different demands than one used in potable water service or a marine environment. Strength, machinability, dezincification resistance, pressure rating, and compliance all need to be reviewed at the start.

Common options include free-machining brass for precision turned parts, red brass for higher corrosion resistance, and lead-free brass for applications that require compliance with drinking water regulations. Industrial Parts Fittings also supports related material needs across select stainless steel and carbon steel valve products when the application calls for it.

For teams sourcing custom parts across several product lines, this matters because it reduces the need to split work between multiple vendors just to satisfy material and compliance targets.

CNC machining, screw machining, and production methods for brass fittings

Custom brass fittings manufacturing often starts with CNC machining. CNC turning centers, mills, and live-tool equipment are ideal for prototypes, lower-volume parts, and complex geometries that need tight control. They are also well suited for specialty threads, cross-holes, wrench flats, and blended features that would be inefficient on less flexible equipment.

When demand increases, the production method may shift. Automatic screw machines and high-output turning platforms support larger runs of repeat parts with excellent consistency and lower per-piece cost. Industrial Parts Fittings has broad production capacity for this stage, including a large fleet of automatic screw machines and CNC equipment that supports both specialized and catalog-driven manufacturing.

Some fittings begin as forged or near-net blanks and are then finish-machined. Others are cut directly from brass bar stock. The right route depends on the design, annual usage, tolerances, and target cost.

That flexibility is especially valuable when a project starts with a small sample order and later expands into steady production.

Quality control for custom brass fittings manufacturing

A fitting is only useful if it performs the same way every time it is installed. That is why inspection must be built into the process, not saved for the last box on the dock.

Quality control for custom brass fittings typically includes dimensional checks, thread verification, visual review, and application-specific functional testing when required. For pressure-related components, that may include leak or pressure testing. For regulated applications, it may also include material certification and traceability.

A strong quality plan usually focuses on:

• Dimensional accuracy: diameters, lengths, bore depth, hex size, concentricity
• Thread integrity: form, pitch, gauge fit, sealing performance
• Surface condition: burr control, plating coverage, cosmetic finish, clean part presentation

In production, consistency matters just as much as the first article. Stable setups, controlled tooling, and repeatable inspection points help keep large batches aligned with the approved sample.

Scaling from sample parts to full production brass fittings

Moving from prototype to production is where many custom part programs either gain momentum or lose time. A one-off sample can be machined with close operator attention, but production requires a process that holds tolerance across the entire lot.

That transition may involve fixture development, revised tool paths, a different starting blank, or a move to higher-output equipment. It may also call for tolerance review. If a print includes dimensions that are tighter than the application truly needs, cycle time and scrap can rise without adding value.

Industrial Parts Fittings supports this transition with a mix of custom machining capability, high-volume manufacturing resources, and responsive service. That is useful for buyers who need prototype speed without sacrificing long-run practicality.

Custom brass fittings for regulated, industrial, and OEM applications

Custom brass fittings appear in a wide range of systems: hydraulic support equipment, air brake assemblies, HVAC connections, plumbing hardware, fluid transfer lines, instrumentation panels, agricultural equipment, and heavy machinery. Each application puts pressure on a different part of the design.

A potable water fitting may require lead-free brass and specific compliance targets. An air system fitting may require precise threading and dependable sealing under repeated cycles. A distributor replacement part may need to match a legacy footprint exactly so existing field assemblies do not need modification.

Industrial Parts Fittings serves procurement teams, engineers, technicians, OEMs, MRO operations, and distributors across these environments with both standard catalog parts and custom-fabricated solutions. That range includes valves, adapters, flare and compression fittings, push-in tube fittings, hose barbs, D.O.T.-approved air brake fittings, lead-free brass options, and specialty machined components.

If the requirement starts with a print, sample, or performance problem to solve, the next step is a manufacturing review focused on feasibility, material, timing, and the best path from first part approval to repeat production.
